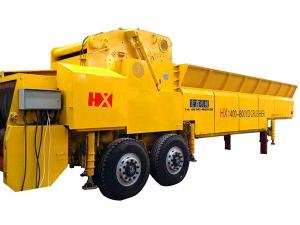

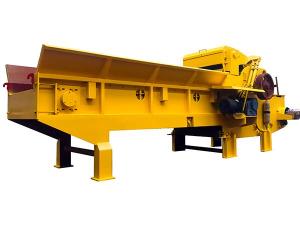

Horizontal Grinder

 Horizontal Grinder

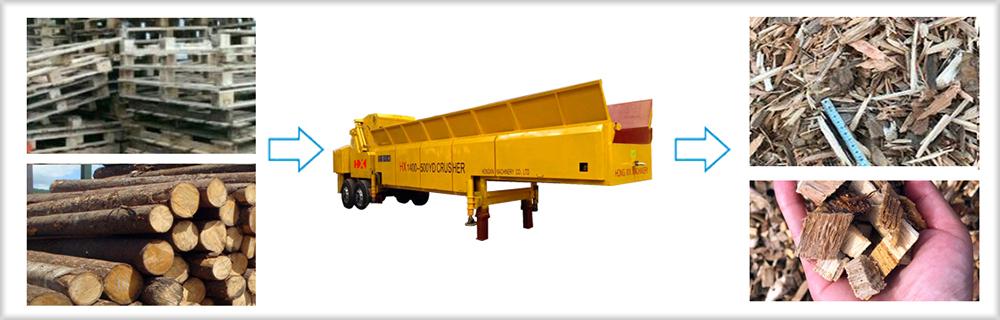

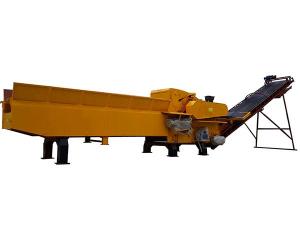

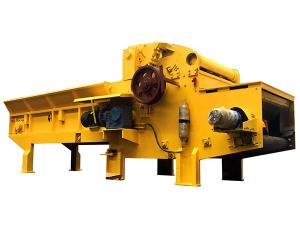

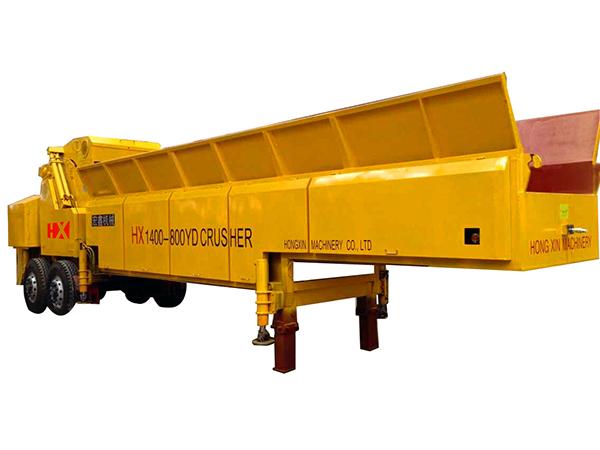

The Hongxing Horizontal Grinder is used for processing items such as,wood logs, wood pallets, formworks, crop stalk,green waste, industrial wood trash and tree bark. These items are to be recycled into fine granules for the preparation of manufacturing new production materials. The Horizontal grinder may be called a wood crushing machine,wood chips making machine, wood shredder, wood chipper, or multifunction industrial waste disposal equipment. The names depend on what the machine is used for. The horizontal grinder is mainly used in biogas, biomass power, biofuel, industrial recycling, compost, engineering wood and fiberwood panel.

The horizontal grinder features
1)Apron conveyer for safety purposes
2) Automatically adjustable material feeding system which is to be changed by the grinding machine present grinding capability. The materials feed can be quick loading or slow changing depending on the controlling order feedback from the grinding part of the grinder by pr rate according of the main motor, avoiding idle running
3) With experienced design and machine parts the grinder possesses high throughput capacity and produces high quality chips

Application
The horizontal grinder is widely used for grinding wood, plywood trim, crop stalks slabs, battens, straws, industrial wood or plastic waste for the purpose of crushing.

Optional Configurations
1. Cutting knives quantities of grinding machine
2. Mesh size of screen
3. Input and out pout production capacity
4. Electric Power

Component

1. Feeding Conveyor of the grinding machine
Features:

Link-joint type
Material is high manganese steel
Long service life

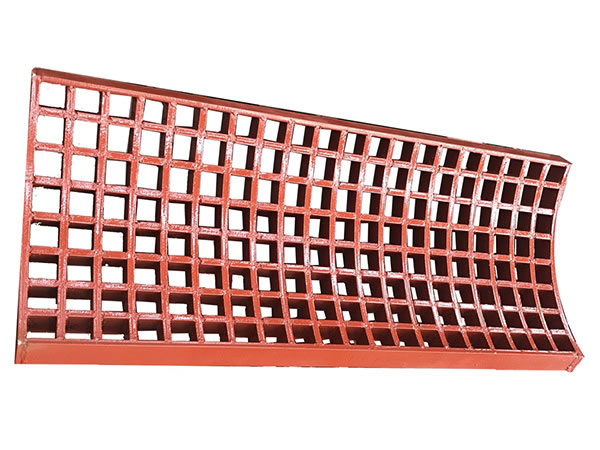

2. Screen of this horizontal grinder
High strength steel
Stereoscopic welded
Verydurable
customized screen size

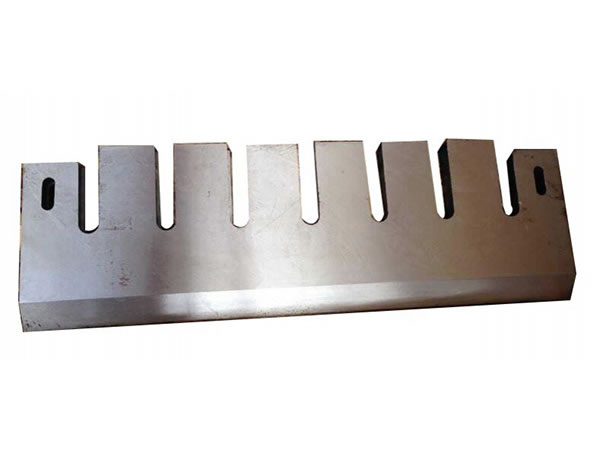

3. Cutting Blade knives of this grinder
Material is H13
Interchangeable
Easy to change
Long service life

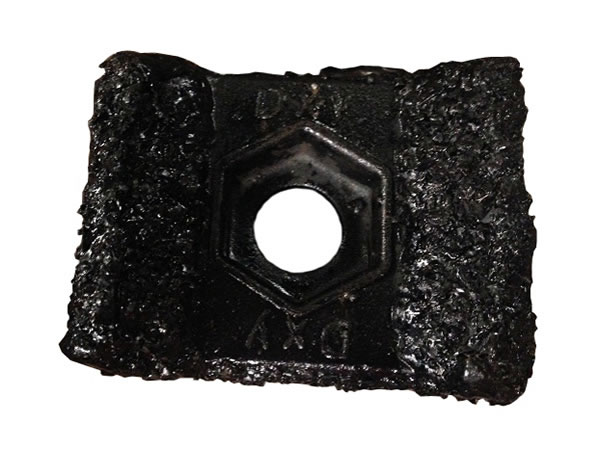

4.Hammering part of this grinder
Used alloy steel No.YT15
the hardness of hammer of this grinder has a long lifespan and is designed to be easily replaced.

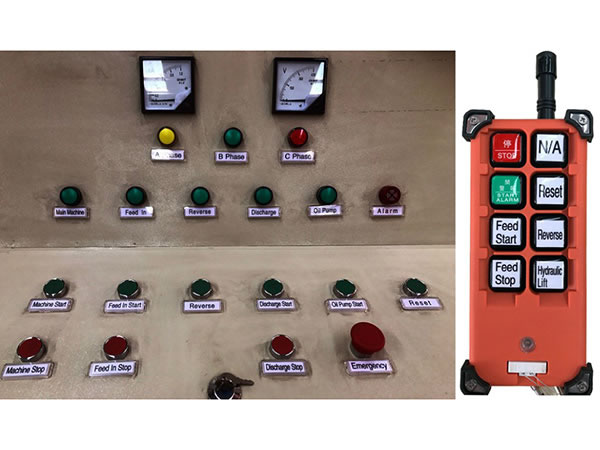

5. Operating Control Cabinet
The operating control cabinet is assembling the function controller together
It is both convenient and safe for use by operators.

6. Other System
To be easy to check and replace cutting knives and screening sheets
Adjustable feeding rollers.

Parameters

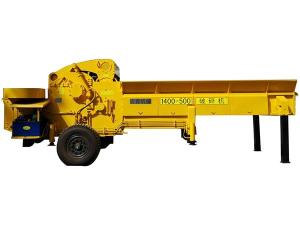

Type HX400A-B HX400C-D HX1250-500 HX1400-500 HX1400-700 HX1400-800 HX1400-1000 HX2000-1000
Rotor diameter (mm) 650 650 800 800 960 1050 1300 1400
Rotational speed (rpm) 650 650 650 760 900 900 960 432
Rotor type 3 blades rotor 3 blades rotor 4 blades rotor, 8 pieces of blades 4 blade rotor, 8 pieces of blades 6 blades rotor, 12 pieces of blades 6 blades rotor, 12 pieces of blades 6 blades rotor, 12 pieces of blades 6 blade rotor, 24 pieces of blades
Screen mesh shape and size (mm) Round or hexagon, 60mm Round or hexagon, 60mm Round or Hexagon, 60mm Round or Hexagon, 60mm Round or Hexagon, 60mm Round or Hexagon, 60mm Round or Hexagon, 60mm Round or Hexagon, 60mm
Feeding power (kw) 7.5+4 7.5+5.5 11 + 7.5 11 + 7.5 11 + 7.5 11 + 7.5 15 + 11 15+15+11
Hydraulic control power (kw) 1.5 3 3 3 4 4 5.5 5.5
Main motor power (kw) 90 110 160 200 250 250 315 400
Discharging power (kw) 3+3 3+3 4 + 5.5 4 + 11 5.5 + 11 5.5 + 11 7.5 +15 7.5 +15
Input conveyor length (mm) Belt conveyor 5000mm Belt conveyor 5000mm 4000mm 4000mm 6000 mm 6000 mm 6000 mm 6000 mm
Output conveyor length (mm) 10000 mm 10000 mm 10000 mm 10000 mm 10000 mm 10000 mm 10000 mm 10000 mm
Chips size (mm) 30-50 30-50 30-50 30-50 30-50 30-50 30-50 30-50
Throughput (t per h) 6-8 8-10 10-12 TPH 12-15 TPH 15-20 TPH 20-25 TPH 30-35 TPH 35-40 TPH
Input size (mm) 700-400 mm 1000-400 mm 1250-500 1400-500 mm 1400-700 1400-800 mm 1400-1000mm 2000-1000mm
Size (m) 7 x 2.3 x 2 8.2 x 2.3 x 2 7.5 x 2.8 x 2.4 7.3 x 3 x 2.6 9.6 x 3 x 3.1 9.9 x 3 x 3.3 11 x 3 x 3.6 11 x 3.4 x 3.9
Weight (t) 6.8 8 15 16 24 26 32 40
Packing 1x40'HQ 1x40'HQ 1 x 40' FR 1 x 40' FR 1 x 40' FR+ 1x 20'GP 1 x 40' FR+ 1x 20'GP 1 x 40' FR+ 1x 20'GP 1x40'FR + 1x40'OT

Brief
We are a leading bio-industry and recycling industry equipment and machine manufacturer for businesses engaged in biomass, biogas, industrial waste recycling, and artificial wood board etc.. We offer these businesses the tree barking machine, wood crushing grinder, wood chipper and hammermill. Hongxin is an experienced and trustworthy horizontal grinder manufacturer.
